| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Gigabyte |

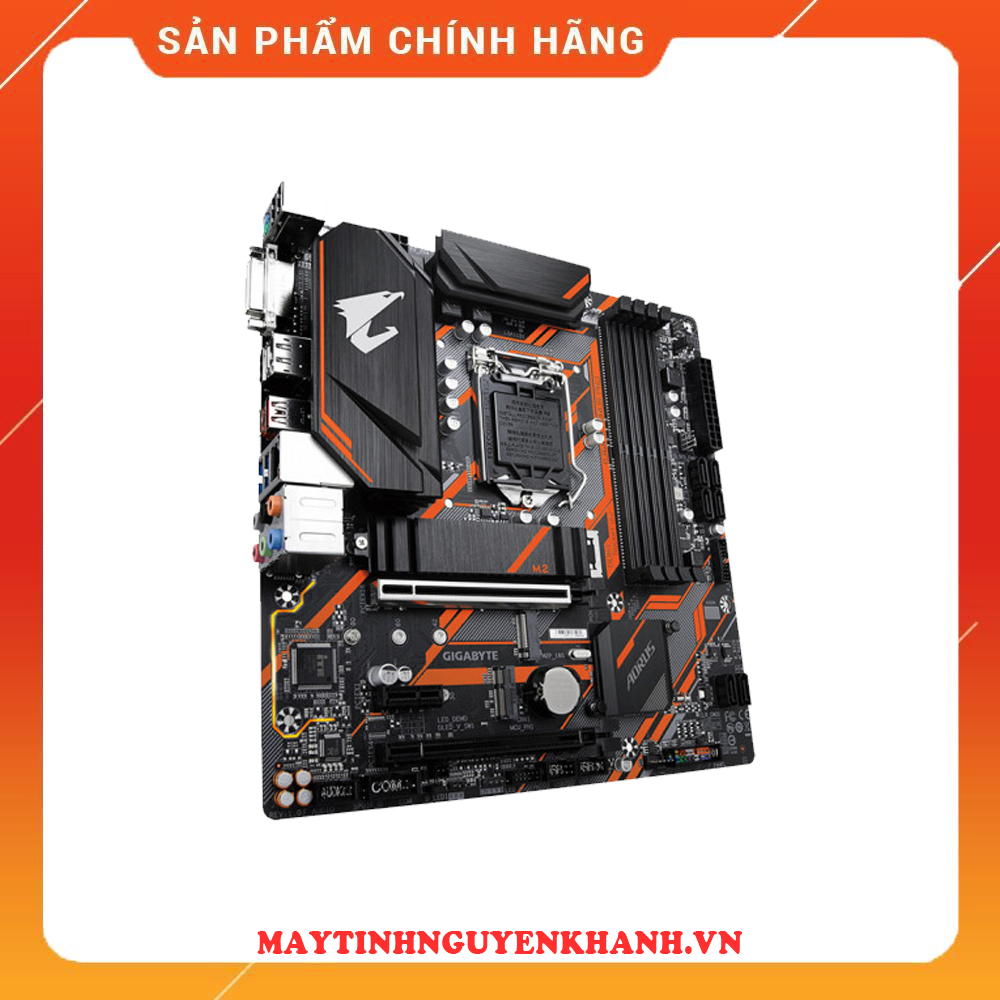

| Model | B360M AORUS PRO |
| Socket | LGA1151 |
| Hỗ trợ CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
| Chipset | Intel B360 |
| Hỗ trợ RAM | 4 x DDR4 DIMM, Support for DDR4 2666/2400/2133 MHz memory modules. Max 64Gb |
| Cạc đồ họa | VGA onboard |
| Âm thanh | Realtek® ALC892 codec. Support for S/PDIF Out |
| Cạc mạng | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Khe cắm trong | 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1, 6 x SATA3, 2 x M.2. Intel® Optane™ Memory Ready. |
| Cổng giao tiếp ngoài | 1 x PS/2, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort, 1 x USB Type-C™ port, with USB 3.1 Gen 1, 1 x USB 3.1 Gen 2 Type-A port (red), 2 x USB 3.1 Gen 1, 2 x USB 2.0/1.1 |
| Kích thước | mATX |
| Tính năng khác | Intel B360 AORUS motherboard with RGB Fusion with Digital LEDs, Intel GbE LAN with cFosSpeed, Dual M.2 slots, Ultra Durable PCIe Armor, Native Intel USB 3.1 Gen2 Type-A, Anti-Sulfur Resistor, Intel CNVi WIFI upgradable slot, Smart Fan 5, DualBIOS™, CEC 2019 ready. |
| Phụ kiện kèm theo | Sách, đĩa, cáp SATA, … |
